Specifications:

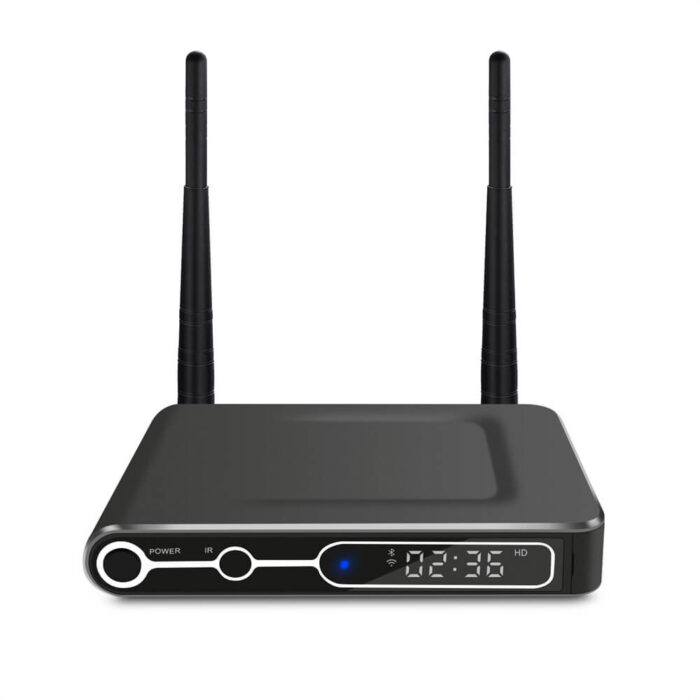

Powerful Amlogic S922X Hexa Core Android TV Box, with 2GB/4GB RAM DDR4, built-in Dual WiFi and BT4.2, with Screen Rotation setting, support both portrait and landscape display, with RTC Clock to work with digital sigange software for Auto power on/off and Timing Playing.
| System Parameters | |
|---|---|
| OS | Android 9.0 |
| CPU | S922X(Amlogic) |
| Basic Frequency | a quad-core ARM Cortex-A73 CPU + a dual-core Cortex-A53 CPU |
| GPU | ARM Mali -G52MP6(6EE) GPU |
| Buffer Memory | 2GB/4GB DDR4 |
| Memory | 16GB/32GB/64GB/128GB EMMC |
| WIFI | 2.4G/5G 802.11a/b/g/n/ac 2T2R |
| BT | BT 4.2 |
| Basic parameters | |
| Video Support(up to 4k) | VP9 Profile-2,H.265 HEVC,H.264 AVC/MVC,MPEG-4 ASP,WMV/VC-1,MPEG-2 MP/HL,MPEG-1 MP/HL,RealVideo 8/9/10 etc. |
| Audio Support | MP3,AAC,WMA,RM,FLAC etc. |
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.） |
| Extended Storage | Support TF Card and Hard Disk |
| Remote Control | Support（IR) Infrared and 2.4G wireless control |
| Power Performance | AC100-240V，50/60Hz DC 5V 2A |
| Interface | 1*TF Card: Max 32GB |
| 1*HDMI: HDMI 2.0 up to 4K2K@60FPS | |
| 1*USB 3.0: Support USB hard disk data read | |
| 1*USB OTG: (host 2.0) Support USB hard disk data read | |
| 1*Earphone: Audio output & AV out | |
| 1*SPDIF: SPDIF output | |
| 1*Ethernet:1000M, standard RJ-45 | |
| 1* DC: 5V 2A | |
| Weight | 1 kg |
|---|---|
| Dimensions | 22 × 18 × 8 cm |
| RAM | 2GB, 4GB DDR4 |
| ROM | 16GB, 32GB, 64GB eMMC |
