Specifications:
RK3588 is Rockchip’s new generation flagship chip, which adopts 8-core CPU (4-core Cortex-A76 + 4-core Cortex-A55) with 8nm production process; supports 8K 60HZ video output and decoding, and integrates 6.0 Tops NPU inside, which can meet the Edge computing needs of most end devices.
RK3588 has rich interfaces, which can realize 8K+4K+2K 3-screen display, or 4K+4K+4K+2K 4-screen display, with Type-C, SATA3.0, PCIE3.0 interfaces, and dual Gigabit Ethernet port, with 4*16bit channel DDR, maximum support 32GB.
This RK3588 Development Board with multi-interfaces include Dual Gigabit Ethernet LAN port, HDMI Input & HDMI Output, Type C etc. Also can connect with Camera. For more info please check below details.
This RK3588 Development Board supports Android 12, Debian11, Ubuntu18.04 three operation systems.

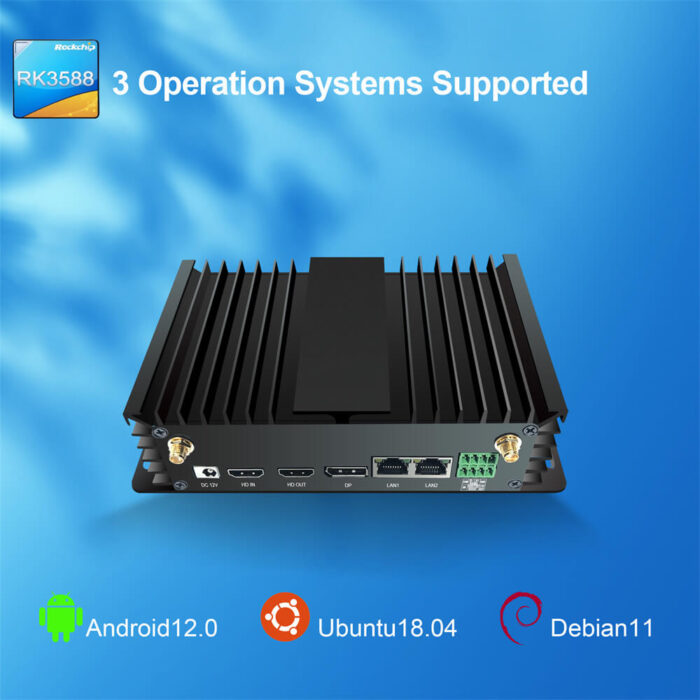

Multi-channel Output, Multi-screen Display supported RK3588 Mini PC Box, With HDMI2.1/two DP video output and HDMI RX2.0/MIPI-CSI video input interface, Support multiple 8K video output and 4K video input. Integrated 48MP ISP with HDR & 3DNR, Support MIPI-CSI camera input.
RK3588 Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.565/H.264 video decoding, support simultaneous encoding and decoding. Up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding. Powerful video encoding and decoding capabilities enable 8K high-definition picture presentation with more delicate picture quality.
| Specifications | |
| CPU | RK3588 Octo-core, Quad-core Cortex-A76 and Quad-core Cortex-A55 |
| Frequency up to 2.4GHz | |
| GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| Embedded high-performance 2D acceleration hardware | |
| DDR | LPDDR4X/4G/8G optional |
| NPU | 6.0 Tops |
| Built-in memory | Support eMMC5.1, SDIO3.0, M.2, SATA |
| Display output | HDMI2.1 interface*1, can output up to 8K 60Hz, HDCP2.3 |
| DP interface*1, 4Lane, can output up to 8K30Hz, HDCP2.3 | |
| DP Type-C port output*1 | |
| Camera | MIPI CSI 2Lane*1 |
| Ethernet | 2*1000M Gigabit RJ45 LAN |
| WIFI | Supports 2.4G/5GHz Dual WiFi,MIMO, IEEE 802.11a/b/g/n/ax |
| Timing clock | Supports RTC |
| USB | USB3.1HOST Type A*1/USB3.1 OTG Type-C*1/USB2.0 HOST HOST Type A*2 |
| SATA | SATA3.0 7Pin*2 |
| PCIE | PCIE3.0 M.2 M-Key |
| Audio | supports MIC and audio interface*1 1.25MM 4PIN CON*1 |
| Industrial interface | RS232 interface*1/RS485 interface*1/I2C interface*1/GPIO*6 |
| Weight | 1 kg |
|---|---|
| Dimensions | 22 × 18 × 8 cm |
| RAM/ROM | 4GB/32GB, 8GB/64GB, 16GB/64GB |
| OS | Android 12, Debian11, Ubuntu 18.04 |
