Specifications:
This is a High end Ai Box comes with Rockchip RK3576 Octa Core CPU, 6TOPS NPU, supports 4K@120Hz, and low power consumption, runs on android 14 and linux os, suitable for a variety of application scenarios such as ARM-based PCs, edge computing box, personal mobile Internet devices, etc. It uses an octa -core CPU based on the ARM architecture, integrates multiple computing cores such as GPU, MCU, NPU, VPU, and has a rich of peripheral interfaces to meet the complex scenario requirements in AIoT.
RK3576 vdeo decoder supports H264,H265,VP9, Av1 and AvS2 eic.up to 8K@30fps or 4K@120fps, and vdeo encoder supports H.264 and H.265 up to 4k@60fps,high-qualty JPEG encoder/decoder supports up to 4ka60fps.
Configured with 2 channel Gigabit Ethernet to maximize network transmission performance. Dual band WiFi 6, Bluetooth 5.1 BLE, and 4G networks integrated leading-edge wireless technologies to provide a variety of high-speed network communication options.

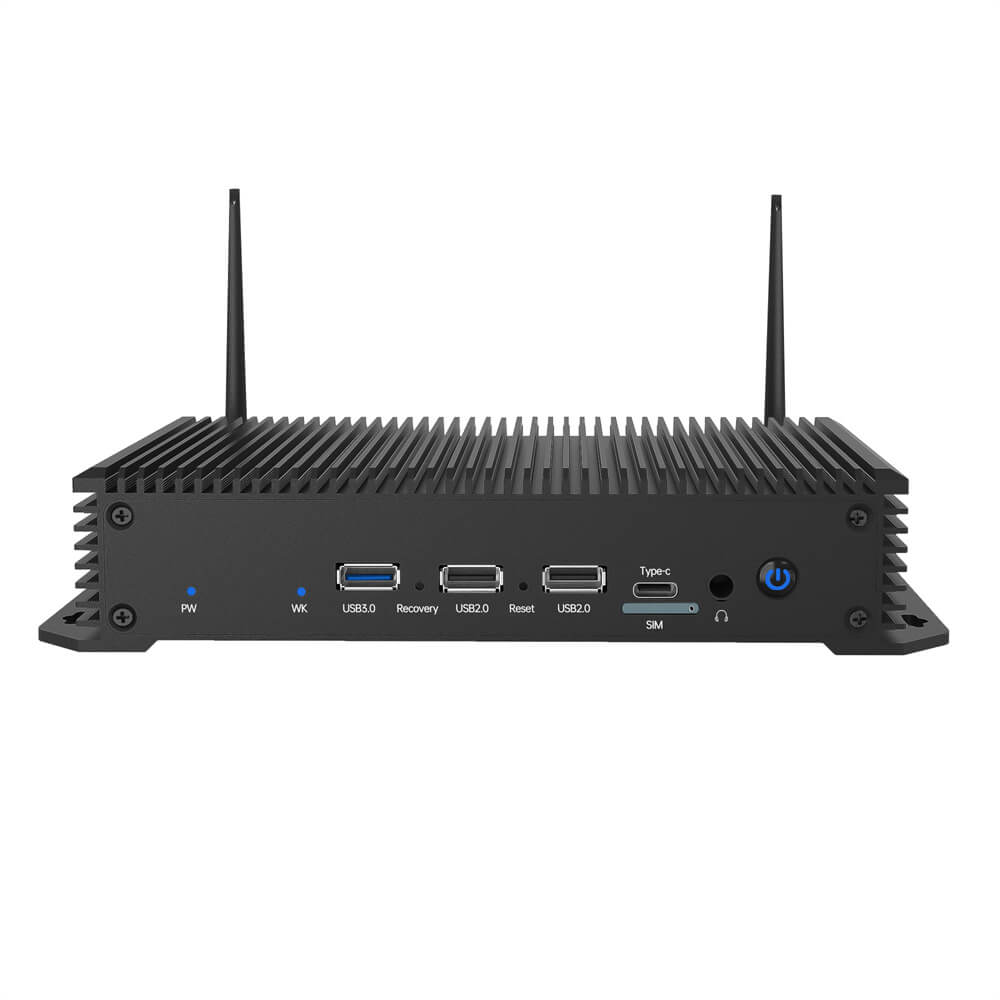

Rich interface scenarios with strong scalability, Integrated Gigabit Ethernet x2, USB 3.0×1,USB 2.0×1, HDMI OUT x1,HDMl IN x1,Headset x1、12V Power Supply, can be directly applied to a variety of intelligent products.
Fanless and efficient heat dissipation, Aluminum alloy chassis cooling, fanless design, all round circulation heat dissipation. All-aluminum cooling gears are installed to dissipate heat, and both sides have cooling gears.
Rockchip RK3576 Ai Box with excellent performance and comprehensive capabilities, can used on a varity of application scenarios, such as medical locations, industrial control, edge computing device, IoT Gateway, Monitoring system, ARM PC, etc.
| Product: Edge | Model: EDGE-RK3576 |
| Hardware Specifications | |
| Chipset | RK3576 with Octa-core , Quad-Core Cortex-A72 and Quad-Core Cortex-A53 |
| GPU | Mali-G52 MC3 |
| NPU | 6.0 TOPS for INT8 Supports INT4,INT8,INT16,FP16,BF16 and TF32 operation |
| FLASH | EMMC:16G/ 32GB /64G /128G Or UFS: 32GB /64G /128G/256G/512G/1T |
| SDRAM | LPDDR5: 32bit 4GB /8GB/16GB |
| Power Supply Specifications | |
| ◆ Power Supply | DC 12V/2.0A |
| ◆Power Indicator (LED) | Power ON :Blue |
| Main Features | |
| ◆OS | Android 14.0/Debian/buildroot/Ubuntu/armbian/wayland |
| ◆ Video Decoder | ◼ H.264 /AVC up to 4K@60fpS ◼ H.265/HEVC up to 8K@30fps or 4K@120fpS ◼ VP9 up to 8K@30fps or 4K@120fpS ◼ AVS2 up to 8K@30fps or 4K@120fpS ◼ AV1 up to 8K@30fps or 4K@120fpS |
| ◆ Video Encoder | ◼ H.264 and H.265 up to 4K@60fpS ◼ Supports multi-stream encoding |
| ◆ JPEG Encoder | ◼ YUV400/YUV420/YUV422/YUV444 ◼ Supports JPEG up to 4K@60fpS ◼ Supports image size is form 16×16 to 65520×65520 |
| ◆ JPEG Decoder | ◼ YUV400/YUV411/YUV420/YUV422/YUV440/YUV444 ◼ Supports JPEG up to 4K@60fpS ◼ Supports image size is form 48×48 to 65520×65520 |
| ◆ Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
| ◆ Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE |
| ◆ Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF |
| ◆ HDR | HDR10 / HDR HLG/HDR ViVid |
| ◆ USB | 1 Type-c USB 3.2 Gen1, 1 Type-A USB 3.2 Gen1 and 2 High speed USB 2.0 |
| ◆ DisplayPort | HD 2.1 and type-c dp v1.4 |
| ◆ HDD file system | FAT16/FAT32/NTFS |
| ◆ Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB |
| ◆ High Definition video output | 4K(3840*2160 pixel ) |
| ◆ LAN | Ethernet:2Ports 1000M standard RJ-45 |
| ◆ Wireless | AP6256 80MHZ 2.4G /5G dual-band Wifi, IEEE 802.11 a/b/g/n/ac |
| ◆ BT | V5.1 EDR and BLE |
| ◆ HD | HD 2.1 for 4k@120Hz |
| Weight | 1 kg |
|---|---|
| Dimensions | 22 × 18 × 8 cm |
| OS | Android 14, Ubuntu 24.04, Debian 12 |
| RAM | 4GB, 8GB, 16GB LPDDR5 |
| ROM | 32GB, 64GB, 128GB eMMC |
