Industrial Grade 7/24Hrs Hardware Watchdog Rockchip RK3566 4K Digital Signage Player Android TV Box with RTC

Specifications:

  • OS: Android 11.0
  • CPU: Rockchip RK3566 Quad Core 64bit
  • GPU: Mali-G52 GPU
  • RAM: 2GB/4GB/8GB DDR4
  • ROM: EMMC 32GB/64GB
  • WiFi: 2.4G WiFi (Dual WiFi optional)
  • Bluetooth: BT 4.2
  • Ethernet: 100M/1000M Etherent
  • HDMI: HDMI2.1 Output, support 4K @60fps
  • Features: RTC Clock, Hardward watchdog, Screen Rotation

Description

Industrial Grade 7/24Hrs Hardware Watchdog Rockchip RK3566 4K Digital Signage Player Android TV Box with RTC

Industrial Grade Digital Signage Player Box, runs on Android 11 OS, with Rockchip RK3566 CPU, 2GB/4GB/8GB RAM DDR4, support 4K portrait and landscape display, hardware & software watchdog, supports 7/24hrs playing and monitoring. Builtin RTC Clock.

rk3568 android player box

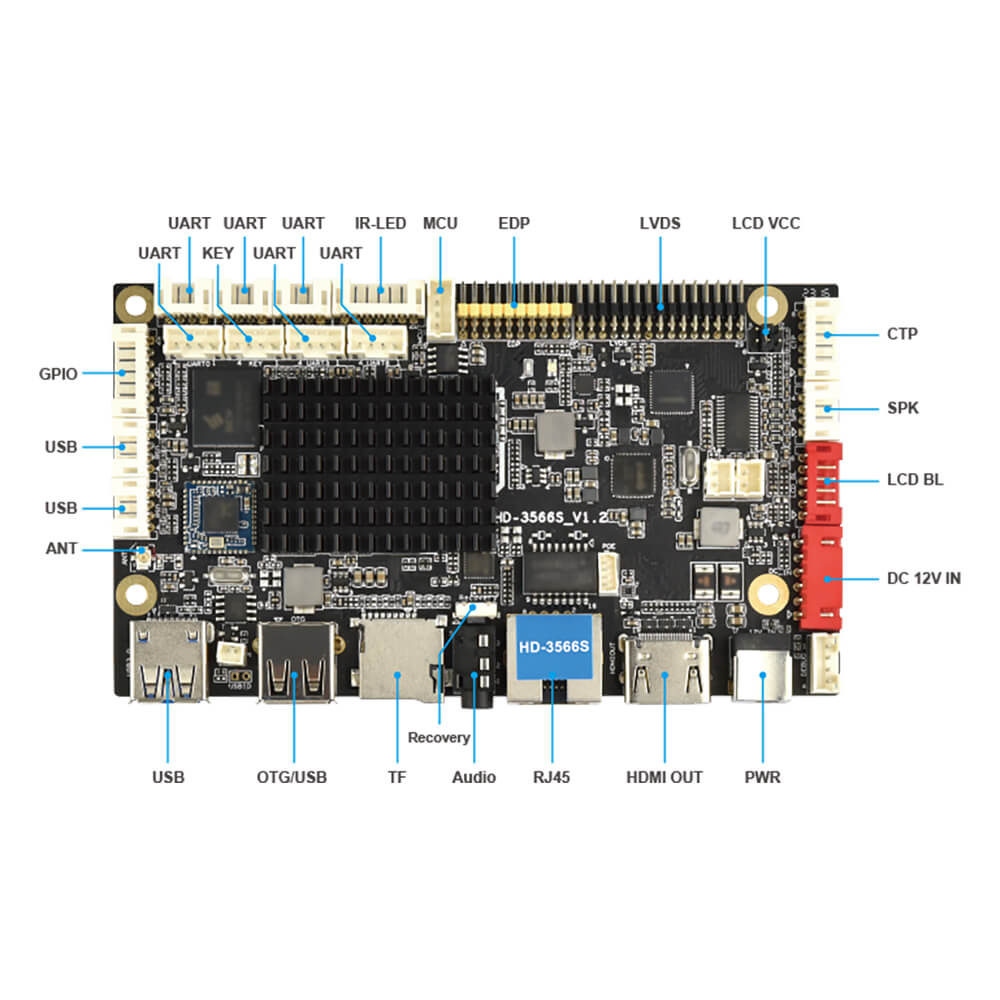

rk3566 android board
rk3568 signage player
android board for digital signage

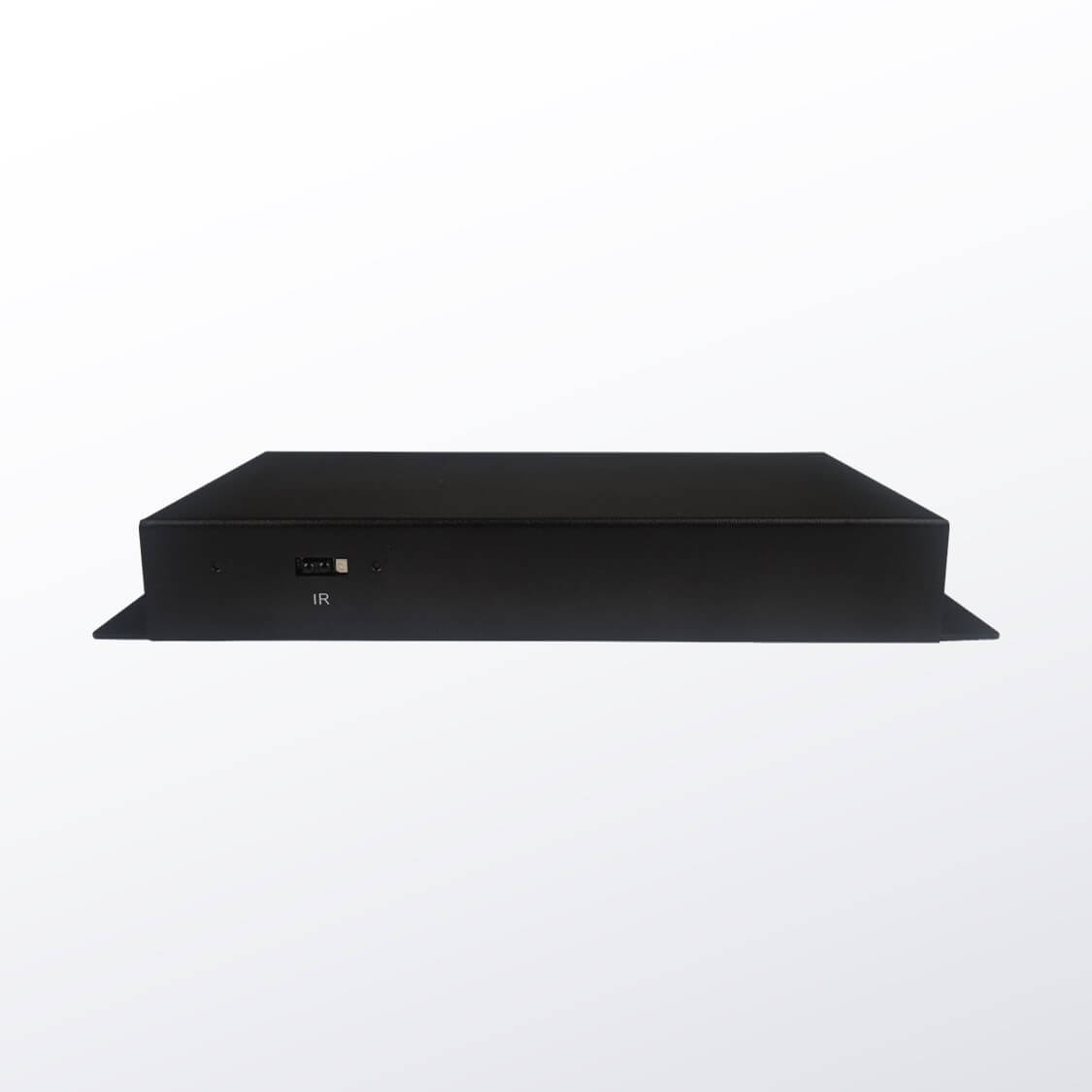

Signage Player Box (3)
Signage Player Box (4)

Parameters:

Hardware Parameters
CPURK3566, Quad-core, the highest frequency 1.8GHz
GPUMali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1
RAM/ Storage2G+32G, 4G+32G, 8G+64G, optional
ConnectionSupport RJ45 100M Ethernet port and Ethernet.
Support 2.4GHz (optional 5GHz) Wi-Fi and Wi-Fi 802.11b / g / n protocol.
Image rotationSupport 0 degree, 90 degree, 180 degree, 270 degree manual rotation
Display interface1 * HDMI interface output
AudioSupport standard left and right channel line output
RTCBuilt-in real-time clock function
USB1 * USB 3.0 HOST, 1 * USB 2.0 or OTG
LED1 * power status LED (green), 1 * system LED (green, blinking by default)
Button1 * Recovery button
Power AdapterInput: AC100-240V.50-60Hz, output: DC12V 1.5A
(Requires that the surge voltage is less than 18V and the ripple voltage is less than
100mV)
Storage Humid0.10~90% RH
Storage Temp-40℃~70℃
Work Temp-20℃~70℃
Software Parameters
Operating systemAndroid 11.0
AudioMP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP, etc.
VideoSupport H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats
ImageSupport various picture formats such as JPG, BMP, PNG
System comes with
application software
APK installer, email, calculator, browser, recorder, calendar, settings, clock, video
player, search, contacts, gallery, download, camera, music, explorer, etc.
Languagesupport multi-language
TypewritingStandard Android keyboard, optional third-party input method
System
Management
The original ecological Android system, open root permissions, can be customized
product development
Real-time remote monitoring, self-recovery of system crash, 7 * 24 hours unattended
Support OTA remote upgrade; support U-disk upgrade
Support boot animation definition
Support server / standalone mode switch
Support Wi-Fi hotspot
System watchdogSupport software watchdog,hardware watchdog

Questions on our products and services? Ask one of our professional Sales for a quick reply.

Inquiry Now
Inquiry Now

Additional information

Weight1.5 kg
Dimensions25 × 22 × 10 cm
RAM

2GB, 4GB, 8GB DDR4

ROM

16GB, 32GB, 64GB eMMC

CPU

Rockchip RK3566, (RK3568 optoinal)
