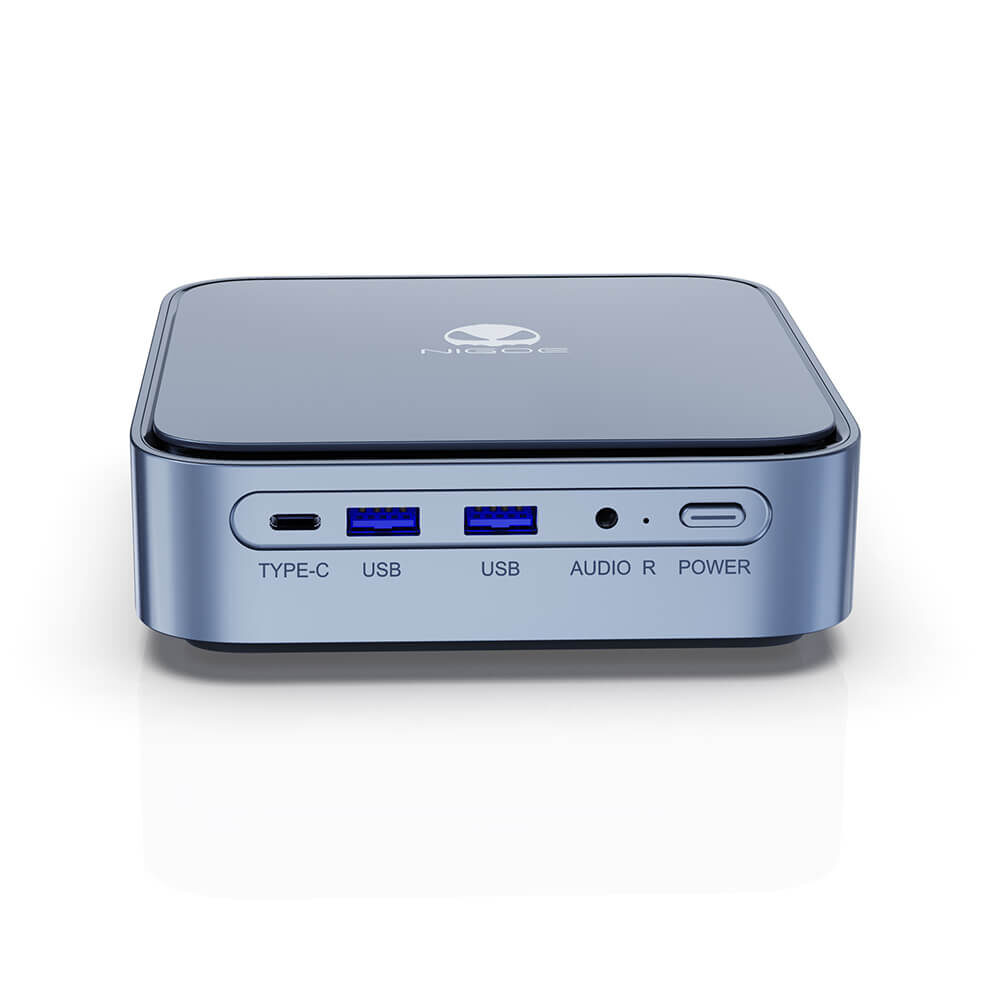

Magnetic Case Intel Core i5 11th 1135G7 Barebone Windows 10 Mini PC

Specifications:

  • Product Name: TK11-B0 Barebone Mini PC
  • OS: Win10 Home/Win10 pro/Win10 IOT/ Ubuntu
  • CPU: Intel® Tiger Lake i5-1135G7(Option:i3-115G4;i7-1165G7)
  • GPU: Intel® Iris® Xe Graphics
  • Material: plastic case, magnetic cover
  • Memory Type: 2xSO-DIMMDDR4, max to 64GB
  • Storage Type: SSD:M.2 2280 NVME/NGFF, Max 4TB;2.5”SSD support, Max to 2TB
  • Display Interfaces: 1x HDMI, 1x DP
  • Wireless:M.2 E_key intel 7265/ 3165,IEEE 802.11 ac + BT 4.2/5.0
  • Ethernet:1x RJ45 LAN, Realtek 8111F Gigabit Ethernet
  • USB:4x USB 3.0, 1x USB Type C
  • Application: advertising signage, office
Category: Tags: ,

Description

Magnetic Case Intel Core i5 11th 1135G7 Barebone Windows 10 Mini PC

New Arrival Barebone Mini PC with high performance 10nm intel core i5 11th 1135G7 CPU, supports dual DDR4 and SSD,also the 2.5” SSD. The unique magnetic case design make it more convenient to install/change the DDR/SSD. Supports Windows 10 64bit and Linux OS, with multi-ports to satisfy variety of use, include HDMI, DP display interfaces, 4 high speed USB 3.0 and Type C port, etc. A high-end small PC for home office, graphic design, playing game, and home entertainment.

tk11 mini pc
mini pc i5
mini pc core i5
magnetic cover mini pc
custom mini pc
i5 11th barebone mini pc

Parameters:

Appearance
TypeFeaturesSpec
ProductDeviceMINI PC
Device size128mm*128mm*39.7mm
MaterialPlastic
Hard configuration
TypefeaturesDescription
CPUPlatformIntel  Tiger Lake  i3-115G4；i5-1135G7 ;
i7-1165G7;
Speed  2.4GHz  ( i5-1135G7)  ; 2.8Ghz（i7-1165G7 ）；
Max frequency4.2GHz  (i5-1135G7)  ; 4.7GHz（i7-1165G7 ）:
power dissipation28W (i5-1135G7；i7-1165G7 ）
MemoryType2xSO-DIMMDDR4
Storage2xSO-DIMMDDR4,Max to 64GB
StorageEMMCNo
SSDM.2 2280 NVME/ NGFF, Max 4TB
2.5 ”SSDsupport, Max to 2TB
TF cardNo
RTCBIOS supportReal-time clock, timing boot
Auto power onBIOS supportYes
Diskless networkBIOS supportsupport uefi no disk startup
TPMCPU interation support TPM 2.0
Dual displayVideo outputsupport HDMI+DP dual display
LEDstatus indicatorred turn on light
Network
TypeFeaturesDescription
WIFITypeM.2 E_key  intel 7265/ 3165
AgreementIEEE 802.11 a, b/g, n, ac
BluetoothTypeM.2 E_key intel 7265/ 3165
AgreementSupport Bluetooth 4.2/5.0
3Gbuild-inNo
4Gbuild-inNo
EthernetLAN110M/100M/1000M self-adaption
Ports
TypeFeaturesDescription
USBUSB2.0No
USBUSB3.0USB3.0 Type-A*4
TFexpand external memoryNo
HDMIAudio/Video outputHDMI 1.4b Type A  x1
VGAVideo outputNo
DPAudio outputx1
RJ45GbeRJ45 x1
Type Cdata transferType-C support expand, data transfer/video output/audio output
POWERpowerx1
DC INDC IN5.5/2.1mm DC Jack x1
Audio-in/outAudio-in/out3.5mm Phone Jack x1 2in1
Antenna1FPCWiFi 5.0GHZx1
Antenna2FPCWiFi 2.4GHZ+BT x1
Software configuration
TypeFeaturesDescription
OSOS versionWin10 Home/Win10 pro/Win10 IOT/ Ubuntu
Applied environment
TypeFeaturesDescription
Environmentoperating temperature0~40℃
storage temperature-20~60℃
humidity90% @ 40 °C (without condensation)
Accessories
TypeFeaturesDescription
AdapterPlug typeinput100~240V 50/60Hz,output 19V/4.7A  DC 5.5*2.1mm
IR remote controlNo
VESAYes

Additional information

Weight1 kg
Dimensions22 × 18 × 8 cm
