3 Displays Supported Intel Core i5 Dual LAN Win10 Fanless Industrial Mini PC

Description

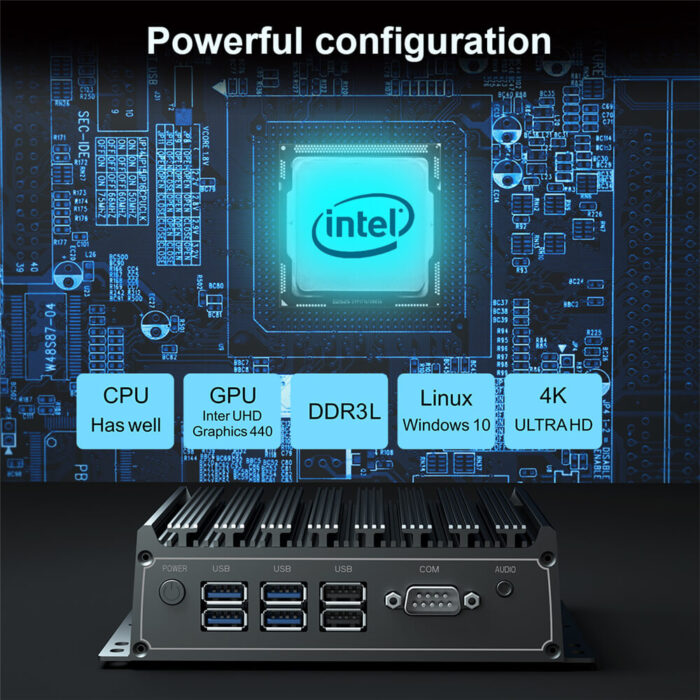

3 Displays Supported Intel Core i5 Dual LAN Win10 Fanless Industrial Mini PC

A fanless industrial pc with intel core i5 4200U /4500U CPU, supports Windows 10 64bit and Linux OS, with multi-ports to satisfy variety of use, include 2 RJ45 LAN ports, 6 high speed USB ports, HDMI, DP and VGA display interfaces enable to connect with three monitors or displays, one RS232 Serial port, etc. A high performance small PC for industrial use.

Parameters:

Processor	CPU	Intel® Core 4100U/4200U /4500U
	BIOS	AMI Source Code
	Chipset	SOC
Memory	Type	DDR3 -1866/1600MHZ
	Socket	1 x SO-DIMM
	Max Size	8GB
Graphics	GPU	Intel® UHD Graphics 440
	HDMI	1 x HDMI (Max. 3840 x 2160 @30Hz)
	VGA	1 x VGA (Max. 1920 x 1080 @30Hz)
	DP	1 x DP (Max. 4096 x 2304 @60Hz)
Network	Controller #1	Realtek 8111F Gigabit Ethernet
	Interface	2 x RJ45
I/O	USB	4 x USB 3.0, 2 x USB 2.0
	Display Interface	1 x HDMI, 1 x VGA 1xDP
	LAN	2 x RJ45
	Serial Port	1XRS232
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	mSATA	1 x Full-size mSATA
	JAHC Switch	1
	SIM	1 x SIM Slot
	LED Indicators	1 x Sleep LED, 1 x Power LED
Storage	SATA	1 x 2.5″ SATA
	mSATA	1 x Full-size mSATA
	PCIE	1* Mini_pcie
JAHC Tech	WatchDog	Timer 0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	RTC	Set Up Independently Every day, A Week as a Cycle
	Remote Control	/
	Wake On Lan	Supported
Operation System	Windows	Windows 10 (64 bit)
	Linux	Supported
Power	Power Type	DC-In
	Power Adapter	12V/4A
Mechanical	Dimensions (W x D x H)	138mm125mm44mm
	Fanless	Yes
	Construction	Metal
	Mounting(Optional)	Desk/Wall Mounting and VESA Mounting Kit
	Color	Black
Environment	Environment	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
	Relative Humidity	95% @ 40℃ (non-condensing)
Certifications	Certifications	CE, FCC, RoHS
