Specifications:

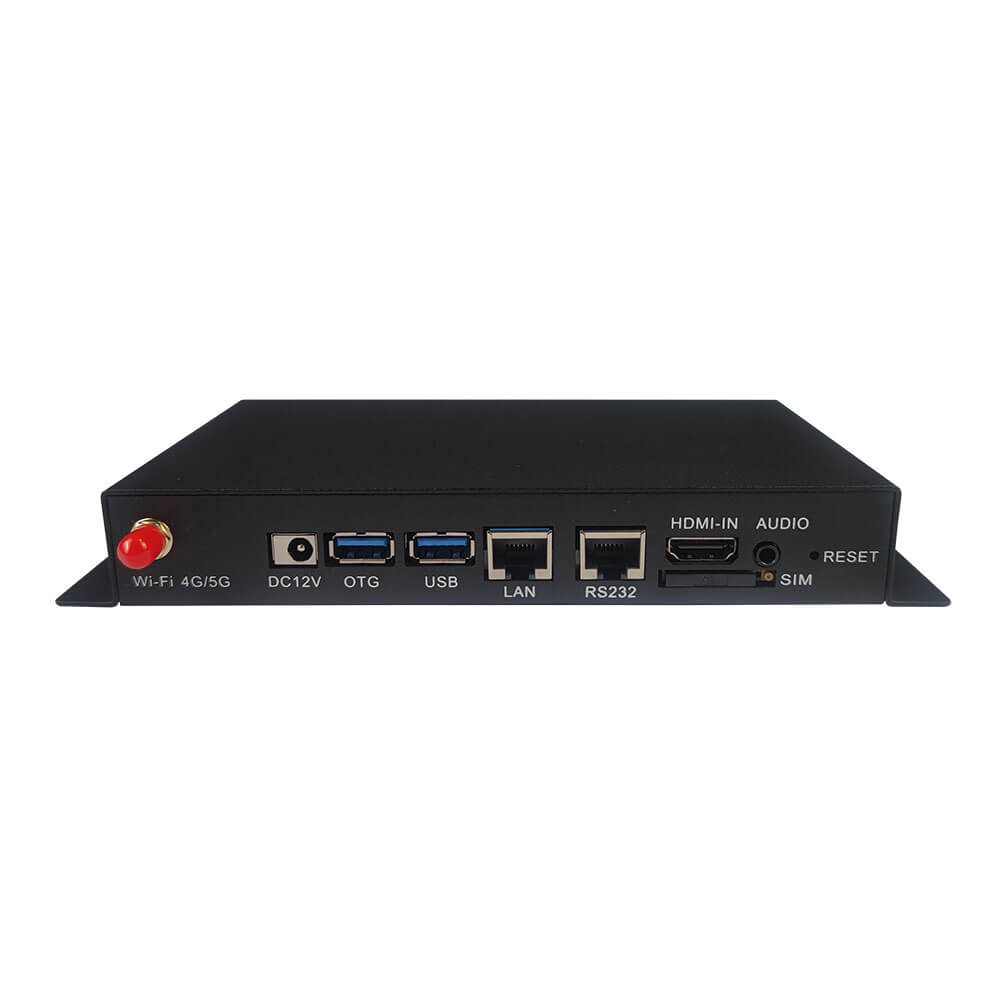

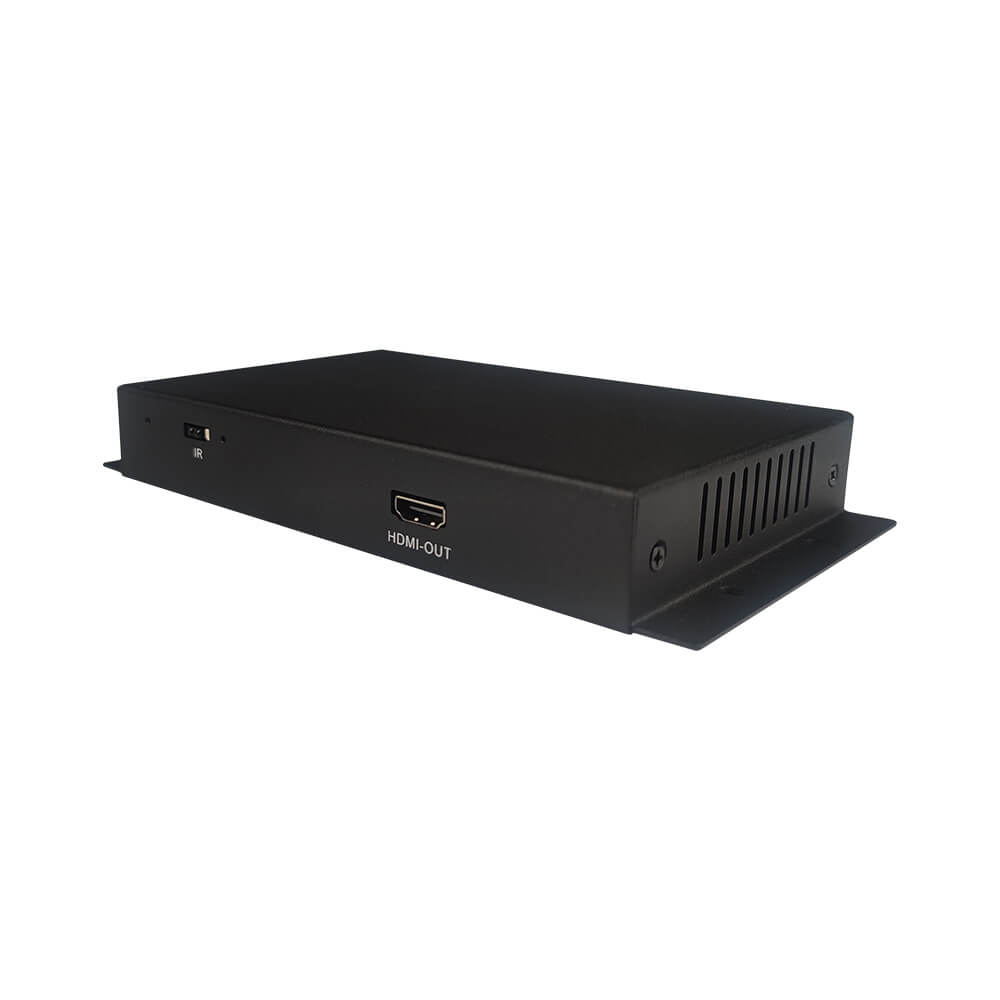

A high performance Industrial grade RK3399 Android box, support 4K @60fps, with HDMI Input & Output, 4G Lte, RTC Clock, support screen rotation and software watchdog, a industrial grade signage player for advertising screen display.

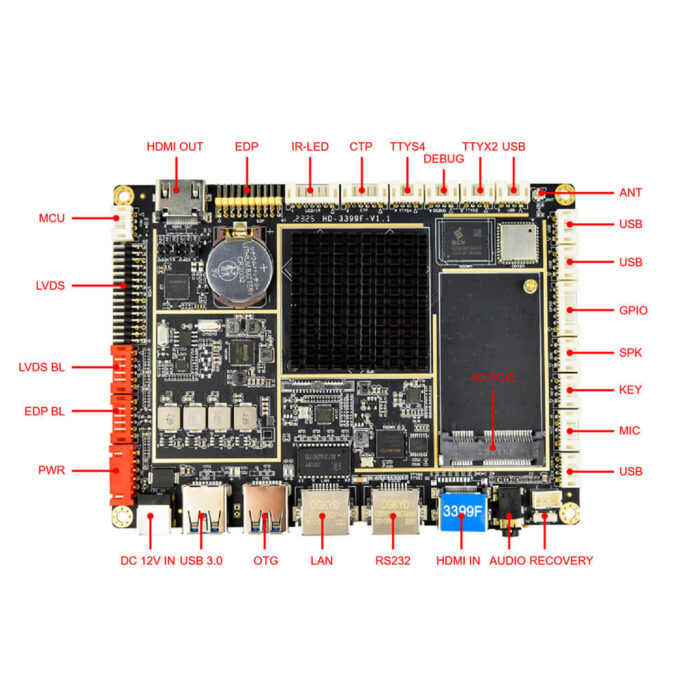

| Hardware specifications | |
|---|---|
| CPU | RK3399 highest 64 bit high performance CPU ，Frequency up to 1.8 GHz； 1.Dual Cortex-A72 big-core + Quad Cortex-A53 little-core 64-bit CPU 2.Build in low energy consumption MCU Cortex-M0 |
| GPU | Quad Cortex ARM Mali-T864 high performance GPU |
| RAM/ Storage | Standard 2GB+32GB, 4GB+32GB,4GB+64GB |
| Network | Adaptive 100M / 1000M Ethernet. Support 2.4G/5G Wi-Fi, support Wi-Fi 802.11b/g/n protocol. Built-in WCDMA, EVDO, 4G full Netcom, support voice calls. |
| Image rotation | Support manual rotation of 0 degrees, 90 degrees, 180 degrees, 270 degrees |
| Display interface | 1 * LVDS interface (single / dual, 6-bit / 8-bit) ,support 7”-108” display screen 1080P 60HZ output, support 3.3V / 5V / 12V power supply 1 HDMI2.0 interface; Support 1080P 60HZ/120 HZ, 4K*2K 60HZ output Support dual screen simultaneous display function, can directly drive interface EDP interface screen with multiple resolutions Onboard backlight control supports 12V backlight power supply |
| HDMI in or TF | 1 HDMI IN or 1 TF card |
| Audio | Support standard left and right channel line output |
| Power amplifier | 2 outputs (8 ohms, 5 watts dual audio amplifier output) |
| Microphone | Differential MIC input |
| Touch screen | Support USB multi-point infrared touch, multi-point capacitive touch, multi-point Nano film touch, multi-point acoustic wave Touch, multi-point optical touch and more. |
| RTC | Built-in real-time clock function |
| USB | 2 USB 3.0 ，4 extended USB 2.0 |
| Infrared | Infrared receiver, support infrared remote control function |
| LED | 1*power status LED(green),1*system LED(green blinking in default) |
| Button | 1*upgrade key |
| Serial port | 1*RS232, 1*TTL/RS232, 1*TTL/RS485, 1*DEBUG |
| IO port | 4 KIO ports, support 5 IO input and output control ，can be used as key scanning control |
| MIPI Camera | 30pin FPC interface ，Largest support 1300w Camera |
| Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 1.5A (Requires surge voltage less than 18V and ripple voltage less than 100mV) |
| Storage Humid | 10%~90% RH |
| Storage Temp | -40℃~70℃ |
| Work Temp | -20℃~70℃ |
| Software specifications | |
| Operating system | Android 11 |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP and other formats |
| Video | Support AVI（H.264 、DIVX 、DIVX 、XVID）, rm ，rmvb ， MKV（H.264 、DIVX、 DIVX 、XVID）， WMV ，MOV ，MP4（ .H.264 、MPEG 、DIVX 、XVID）， DAT（VCD format）， VOB（DVD format）， PMP,MPEG ，.MPG, ， FLV（H.263 ，H.264）， ASF ，TS ， TP ，3GP ，MPG etc. and other 30 kinds of formats |
| Image | Support various image formats such as JPG 、BMP 、PNG |
| System comes with application software | APK Installer, Email, Calculator, Browser, Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Download, Camera, Music, Explorer, etc. |
| Language | Support multi-language |
| Input | Standard Android keyboard with optional third-party input method |
| System Management | Original ecological Android system, open root permissions, and can customize product development |
| Real-time remote monitoring, system crash self-recovery, unattended 7 * 24 hours | |
| Support OTA remote upgrade; support U disk upgrade | |
| Support boot animation definition | |
| Support server / stand-alone mode switching | |
| Support Wi-Fi hotspot | |
| System watchdog | Support software watchdog |
| Weight | 1 kg |
|---|---|
| Dimensions | 22 × 18 × 8 cm |
| RAM | 2GB, 4GB DDR4 |
| ROM | 16GB, 32GB, 64GB, 128GB eMMC |
