Custom Amlogic S922X Hexa-Core 4GB RAM Linux TV Box

Specifications:

  • Product Name: Amlogic S922X Hexa-Core Linux TV Box
  • OS: Android 11, Ubuntu 20.04 (Linux 5.15), Debian10 /11
  • CPU:Amlogic S922X 64-bit quad core ARM® Cortex™ A73 CPU and dual core ARM® Cortex™ A53 CPU
  • GPU: ARM Mali TM-G52 MP4 (6EE)
  • RAM: 2GB/4GB/8GB DDR
  • ROM: 32GB/ 64GB/ 128GB/ 256GB eMMC Flash
  • HDMI: HDMI 2.1
  • WiFi: IEEE 802.11 ac; 2.4G/5G Dual Band 2T2R MiMO WiFi +BT 4.2
  • Ethernet: 100M /1000M Gigabit RJ45 LAN
  • Resolution: 4K Ultra HD,4K@60fps, 8K@24fps
  • USB: 1x USB 3.0, 1x USB 2.0
  • Material: Metal+ Plastic
  • Application: digital Signage, OTT, Smart Home

Description

Custom Amlogic S922X Hexa-Core 4GB RAM Linux TV Box

High-end Linux set top box, comes with Amlogic S922X CPU, supports 8K decoding, 4K @60fps,built-in 2.4G/5GHz Dual WiFi and bluetooth, 1000M Gigabit Ethernet. Can run on the latest Ubuntu 20.04 (Linux 5.15) and Debian 11 Operation system. It can work as a 4K media player for digital signage, a ARM mini Computer for office, also suit for many other commercial use.

amlogic s922x linux tv box

This S922X Linux TV Box supports to run on the latest Ubuntu 20/04 (linux 5.15) and Debian 10/11 operations.

s922x tv box

Amlogic S922X is a new and high-end 12nm Hexa-Core CPU, Quad-Core ARM Cortex-A73 +Dual-core ARM Cortex-A53,ARM Mali-G52 MP4 (6EE) GPU, supports 8K decoding, 4Kp75 10bit H.265, VP9, AVS2 decoding, HDR10+.

custom tv box

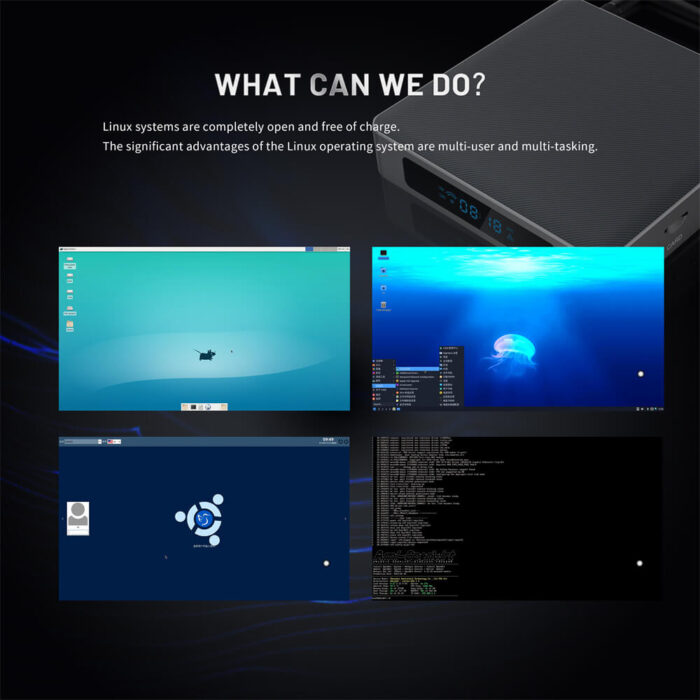

Linux systems are completely open and free of charge. The significant advantages of the Linux operating system are multi-user and multi-tasking.

amlogic linux stb

Linux system is more personalized and can be used with Google Browser.

arm linux board

It supports to customize the PCB board to satisfy with some specific requirements, like add RTC (real time clock) to realize auto power on and play video in set time, which usually required on digital signage use. Also support to customize the board with Dual LAN Ethernet ports.
As to the firmware, that’s also available to customize with your Logo as launcher and integrated your application with the firmware to make it suit for your use more.

8k amlogic s922x linux tv box

This S922X TV Box comes with multi-interfaces, include HDMI2.1, AV, RJ45 Ethernet, Optical port, TF card slot, two USB ports. and replaceable external antenna.

Parameters:

CPUAmlogic S922X  64-bit quad core ARM® Cortex™ A73 CPU and dual core ARM® Cortex™ A53 CPU
GPUoARM MaliTM-G52 MP4 GPU processor
MemoryLPDDR3: 2GB/4GB
FlasheMMC:32GB(Optional: 16GB/64GB/128GB/256GB )
WiFiIEEE 802.11 a/b/g/n/ac ;  2.4G / 5G  Dual WiFi, 2T2R MiMO
BT Version BT4.2
MoldMetal + Plastic
I/OHDMI1*HDMI 2.1
3*USB1 * USB 3.0 ; 1*USB 2.0
1*AV OUTonly Android
IR ReciverRemote Reciver Connect  [Optional]
RTC[Optional]
LED DisplayTime&Icons
RJ45Ethernet Interface;Support 10/100/1000M
TF CARDSupport 4GB/8GB/16GB/32GB/64GB
PowerDC 5V/2A
Software
OSUbuntu20.04(Linux5.15)  Debian 10/11  OpenWrt
Desktoplubuntu /xubuntu / lxde /  xfce4
Default LanguageEnglish
Appliactions
Apps&ServicesYou can install applications or services by APT or DPKG.

Additional information

Weight1 kg
Dimensions22 × 18 × 8 cm
CPU

Amlogic S922X Hexa-Core

RAM

2GB, 4GB, 8GB

ROM

32GB, 64GB, 128GB, 256GB
