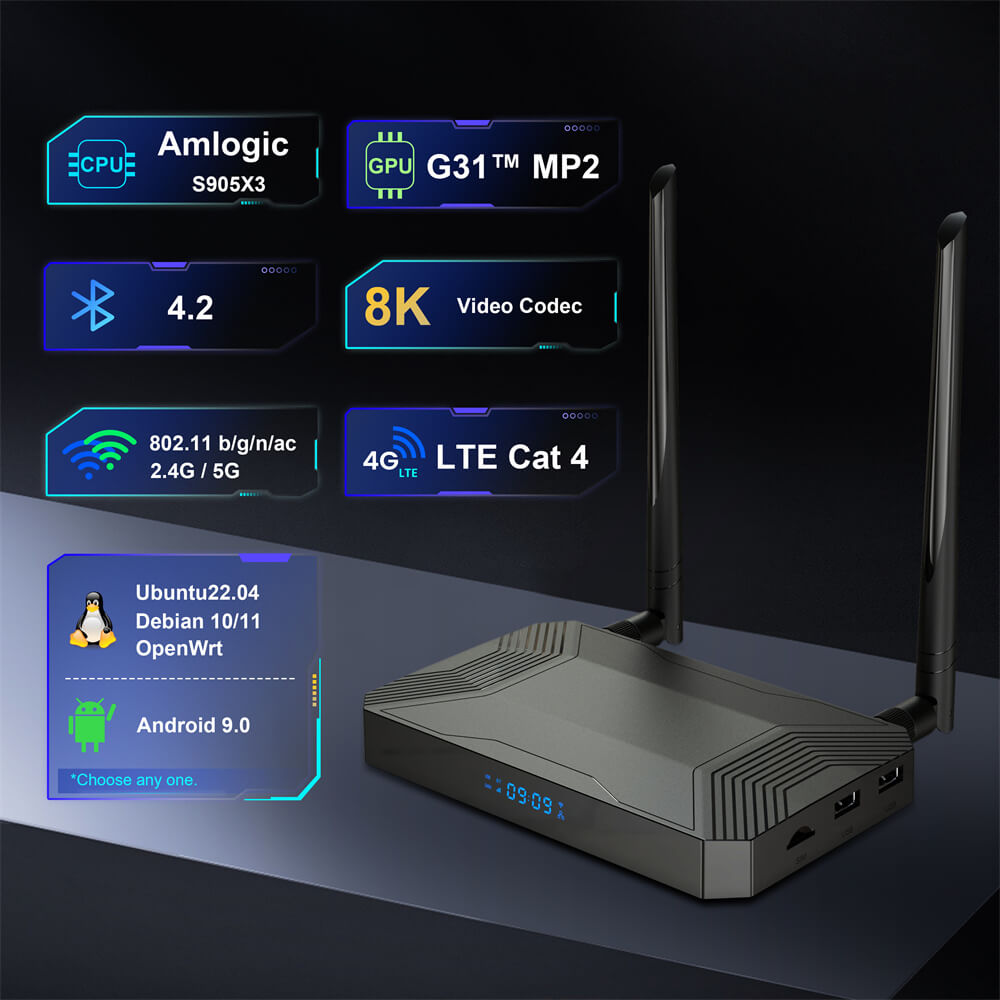

RTC Amlogic S905X3 4K HDR 4G Lte Android TV Box with SIM Card Slot

Specifications:

  • Product Name: Amlogic S905X3 4G Lte Android TV Box
  • OS: Android 9 (default), Ubuntu 22.04, Debian10 /11
  • CPU: Amlogic S905X3 quad core ARM Cortex A55
  • GPU: ARM G31 MP2
  • RAM: 2GB/4GB DDR
  • ROM: 16GB/32GB eMMC Flash
  • HDMI: HDMI 2.1
  • WiFi: IEEE 802.11 ac; 2.4G/5G Dual Band WiFi +BT 4.2
  • Ethernet: 100M /1000M Gigabit RJ45 LAN
  • Resolution: 4K Ultra HD, 4K@60fps, 8K@24fps
  • USB: 1x USB 3.0, 3x USB 2.0
  • RTC and Screen Rotation supported, ideal for advertising display
  • Application:3D Printing, digital Signage, OTT, Smart Home
Categories: , , , , Tag:

Description

RTC Amlogic S905X3 4K HDR 4G Lte Android TV Box with SIM Card Slot

A 4G Lte Android TV Box with SIM Card Slot,built-in with Amlogic S905X3 Quad Core CPU, supports 8K decoding, 4K @60fps,built-in 2.4G/5GHz Dual WiFi and bluetooth, supports Screen rotation and RTC. Can runs on the latest Ubuntu 22.04, Debian 11 and Android 9 Operation system. It can be used on 3D Printing, digital signage, video conference, gaming and education.
Remark: This model support to use Global 4G Module to cover all the 4G Bands, also can choose the proper 4G Module suit for your target country only.

android tv box with sim slot
android tv box with 4g sim card
4g lte linux tv box

This 4G Lte Android TV Box also supports to run on Linux OS, include Ubuntu22.04, Debian 11 etc.

8k android tv box

Amlogic S905X3 Quad Core CPU supports 8K*4K@24fps Decoding and 3D function. H.265 video decoding technology saves 50% of bandwidth resources than H.264. This TV Box will offer you with smooth 4K UHD video vision.

tv box sim
wifi box sim

This 4G Lte Linux & Android Dual OS TV Box can be used on 3D printing, ARM Architecture Computer /Mini PC, Video Conference, Teaching, Play Games and Watch Movies.

Parameters:

Basic parameters
CPUChipsetAmlogic S905X3
ArchitectureQuad core ARM Cortex A55
GPUChipsetARM G31 MP2
RAMCapacity4GB
ROMCapacity32GB  (Max 256GB Optional)
External storageUSB Storage DevicesSupported
4G LTE/ Mini PCIeLTE-FDDB1/B3/B5/B8
LTE-TDDB34/B38/B39/B40/B41
WCDMAB1/B5/B8
GSM/EDGEB3/B8
GNSSGPS/GLONASS/BDS/Galileo（optional）
Note:EC200A-CN(Default) /Different modules support different frequency bands.
Software
Operating systemOS VersionAndroid  9
LanguageMulti-Language
MultimediaVideovideo Decoder
–  VP9 Profile-2 up to 4Kx2K@60fps
–  H.265 HEVC [email protected] up to 4Kx2K@60fps
–  AVS2-P2 Profile up to 4Kx2K@60fps
–  H.264 AVC [email protected] up to 4Kx2K@30fps
–  MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
–  WMV/VC-1 SP/MP/AP up to 1080P@60fps
–   AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
–  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
–  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
–  RealVideo 8/9/10 up to 1080P@60fps
Video encoder:
–  Independent JPEG and H.264 encoder with configurable performance/bit-rate
–  JPEG image encoding
–  H.265/H.264 video encoding up to 1080P@60fps with low latency
AudioAudio Codec:
–  Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
–  Low-power VAD
–  Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output, SPDIF supports
192KHz 16/24/32bit stereo
–  3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32-
bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch
–  Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
–  Built-in stereo audio DAC
–  Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
ImageHD JPEG、BMP、GIF、PNG、TIF
Network service
Wi-FiTypeIEEE802. 11a/b/g/n/ac
Frequency2.4GHZ /5.8GHZ
Antenna TypeExternal antennas
BTBTBT4.2
Interface
Power supplyDC connectorDC 5V/2A
Video outputHD1* HD 2.1a 4Kx2K @60
CVBSSupport PAL/NTSC
AudioOPTCAL1 * SPDIF
EthernetEthernet1 * 1000M
TF CardExternal memory1 * TF Card
SIM cardSIM1 * Sim Card
USB portUSB Host1 * USB 3.0
3 *USB 2.0
UpgradeKEYUpdate firmware
OthersRTCSupport
Appearance
Body MaterialPlastic
ColorBlack
Size143mm*215mm*25mm

Additional information

Weight1 kg
Dimensions22 × 18 × 8 cm
CPU

Amlogic S905X3 Quad Core

RAM

2GB, 4GB

ROM

16GB, 32GB
