Description

6 TOPS NPU 8K Edge Computing Box RK3588S Octa Core 8GB RAM Ai Linux Android TV Box with External Antenna

A high end true 8K Android Mini PC, Rockchip RK3588S Octa Core CPU, NPU computing power is up to 6 TOPS, support INT4/INT8/INT16 mixed operations. A high-end 8K Media Player could used on smart medical devices, industrial workshop, industrial automation, monitoring system, multimedia education, etc.

This RK3588S TV Box supports Android and Linux Dual OS, runs on Android 12, Debian 11 and Ubuntu 20.04 (keep updating). 4GB/8GB/16GB RAM DDR4, supports 8K @60fps resolution.

RK3588 Parameters:
– 8nm process, quad-core Cortex-A76 + quad-core Cortex-A55
– ARM Mali-G610 MC4 GPU
– 6.0 TOPs NPU， enable various AI applications
– 8K video codec ,8K@60fps display out
– Rich high-speed interfaces (PCIe, TYPE-C, Gigabit ethernet)
– Android and Linux OS

Powerful 2.4G/5G 2T2R MiMO WiFi6, can cover 2.4/5GHz, provide faster transmission speed, larger transmission capacity, more stable, low latency and consumption than WiFi5.

Parameters:

CPU	RockChip RK3588S
	Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8nm advanced process, main frequency up to 2.4GHz
GPU	ARM Mali-G610 MP4 quad-core GPU
	Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU	NPU computing power is up to 6 TOPS, support INT4/INT8/INT16 mixed operations
	Can realize network model conversion based on TensorFlow / MXNet / PyTorch / Caffe and other series of frameworks
ISP	Integrated 48MP ISP with HDR&3DNR
Video Decoding/Encoding	Video decoding:
	8K@60fps H.265/VP9/AVS2
	8K@30fps H.264 AVC/MVC
	4K@60fps AV1
	1080P@60fps MPEG-2/-1/VC-1/VP8
	Video encoding:
	8K@30fps encoding, support H.265/H.264
	*Up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding can be achieved
Memory	LPDDR4X
	4GB/8GB/16GB 64bit LPDDR4/LPDDR4x (max 32GB)
Storage	Support eMMC5.1, SDIO3.0
	16GB/32GB/64GB/128GB eMMC
TF Card	1×TF Card
Ethernet	1 × 1000Mbps Ethernet (RJ45)
Display	1 × HDMI2.1 (8K@60fps or 4K@120fps)
	2 × MIPI-DSI (4K@60fps)
	1 × DP1.4 (8K@30fps)
Camera	3×4 lane MIPI-CSI
Audio	1 × 3.5mm headphone jack
	1 × HDMI2.1 audio output
PCIE	1 × M.2 (PCIe2.0) interface, expandable 2242 PCIe2.0 WIFI
USB	1×USB3.0
	1 × USB-C full-function interface (USB3.0 OTG/DP1.4)
	1×USB2.0

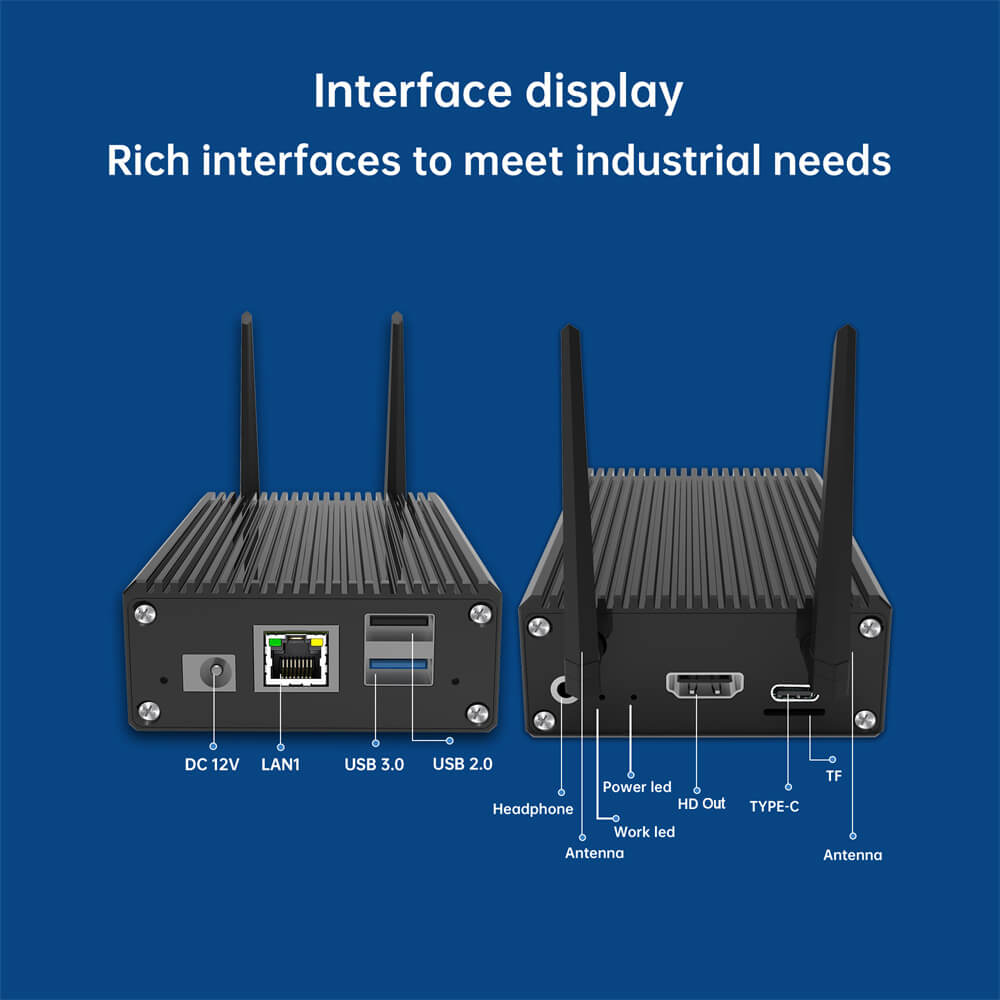

Other Interfaces	1 × Debug (3P-2.0mm)
	1 × 26P-2.0mm pin header (GPIO)
RTC	support
MIC	support
