Specifications:

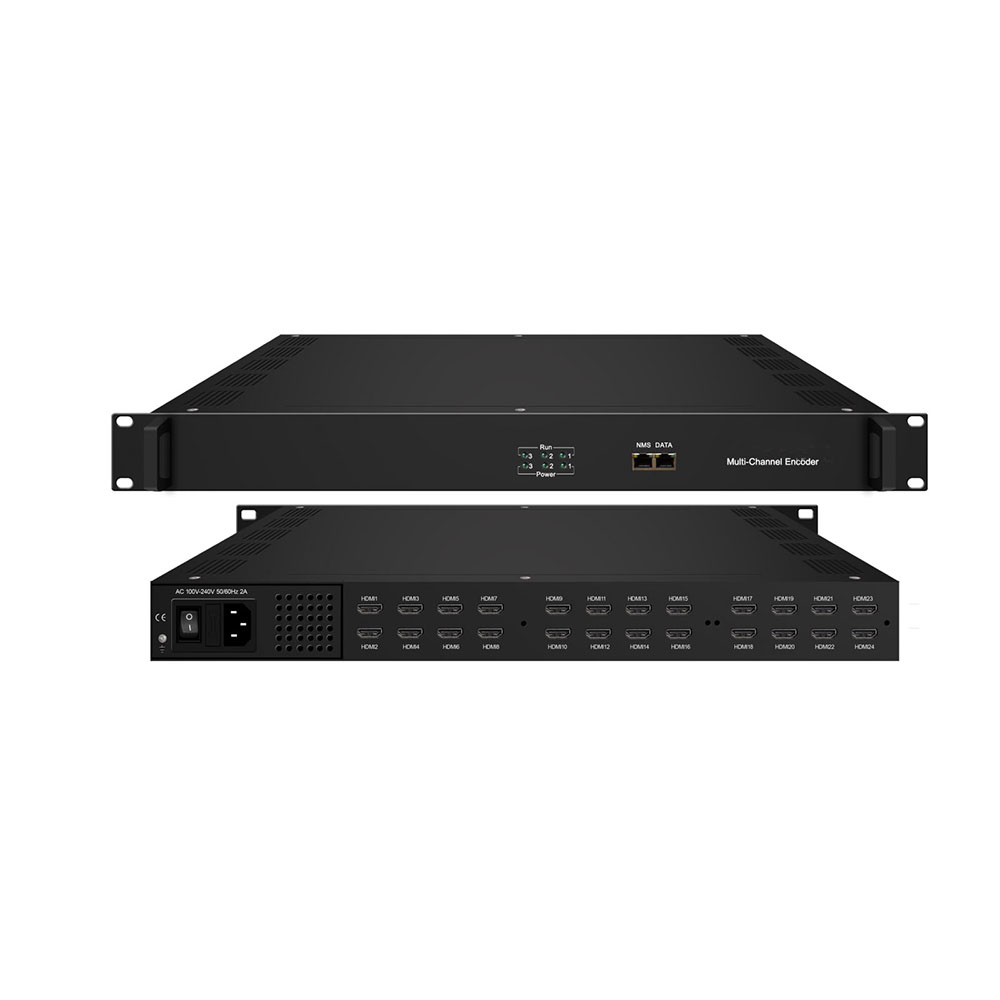

Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 16/24 HDMI inputs with very 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
| Input | 16 HDMI inputs ; 24 HDMI inputs | |||
| Video | Resolution | input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i | |
| Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P | |||
| Encoding | MPEG-4 AVC/H.264 | |||
| Bit-rate | 1~20Mbps each channel | |||
| Rate Control | CBR/VBR | |||
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) | |||
| Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | ||
| Sampling rate | 48KHz | |||
| Resolution | 24-bit | |||
| Audio Gain | 0-255 Adjustable | |||
| MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | |||
| LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | |||
| HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps | |||
| Stream output | IP output through DATA (GE) over UDP and RTP/RTSP protocol (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module) | |||
| System function | Network management (WEB) | |||
| English language | ||||
| Ethernet software upgrade | ||||
| Miscellaneous | Dimension(W×L×H) | 440mm×324mm×44mm | ||
| Environment | 0~45℃(work)；-20~80℃（Storage） | |||
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | |||
| Weight | 7 kg |
|---|---|
| Dimensions | 60 × 55 × 20 cm |
