- OS: Android 9.0
- CPU: RK3368 Octa-core cortex-A53 frequency:1.5G
- GPU: PowerVR G6110 GPU
- RAM: 2GB DDR3
- ROM: 16GB EMMC Flash
- WiFi: 2.4G/5.8GHz Dual-band WiFi
- Bluetooth: BT4.2
- Ethernet: 10/100M RJ45 LAN
- Resolution:4k ultra HD, 4K@60Hz
- Camera: 800W HD Camera
- USB: 2x USB 2.0
A series of Android TV Box with Rockchip CPU, include RK3588, RK3576, RK3566,RK3528,RK3328,RK3318 etc.Supply 8K and 4K display solution.
- Specifications:
- OS: Android 12.0, Debian 11, Ubuntu 20.04
- CPU: Rockchip RK3588S Octa Core
- GPU: Mali-G610 MP4
- RAM: 4GB/8GB/16GB DDR4
- ROM: 32GB/64GB eMMC
- WiFi/BT: 2.4G+5.8GHz Dual WiFi, WiFi6+ BT5.2
- Ethernet: 10/100M/1000M Gigabit RJ45 LAN
- Resolution:8K @60fps, 4K@120Hz
- Display:1 × HDMI2.1 (8K@60fps or 4K@120fps), 2 × MIPI-DSI (4K@60fps), 1 × DP1.4 (8K@30fps)
- Feature: True 8K, 6TOPS NPU, RTC
- Application: edge computing box, Industrial automation, Smart Medical device, multimedia education, monitoring system
- Specifications:
- OS: Android 11.0
- CPU: Rockchip RK3566 Quad Core 64bit
- GPU: Mali-G52 1-Core-2EE
- RAM: 4GB/8GB DDR4
- ROM: EMMC 32GB/64GB/128GB
- WiFi: 2.4G/5.8GHz 2T2R Dual WiFi
- Bluetooth: BT 4.1
- Ethernet: 100M/1000M Gigabit Etherent
- HD: HD2.1, support 4K @60fps, 8K@25fps
- USB: 1x USB 3.0, 2x USB 2.0
- Housing Material: Alumnium Alloy Shell + Plastic Upper Cover
- RTC: optional
- Screen Rotation: support to set 0,90,180,270 degree display
- Specifications:
- OS: Android 14 (Optional for Ubuntu 24.04 / Debian 12
- CPU: Rockchip RK3576 Octa-Core (Quad-Core Cortex-A72 and Quad-Core Cortex-A53)
- GPU: Mali-G52 MC3
- NPU: 6.0 TOPS for INT8, Supports INT4,INT8,INT16,FP16,BF16 and TF32 operation
- RAM: 4GB/8GB/16GB LPDDR5
- ROM: 32GB/64GB/128GB EMMC Flash
- Wireless: 2.4G&5G Dual WiFi, WiFi6 +BT5.1
- Ethernet: 2*1000M Gigabit RJ45 LAN
- Display: HD 2.1 and Type-C DP V1.4
- HD: HD2.1 for 4K@120Hz
- Application: Edge computing box, Ai Box, AIoT
- OS: Android 11
- CPU: Rockchip RK3566 Quad Core
- GPU: ARM Mali-G522EE GPU
- RAM: 2GB/4GB LPDDR4
- ROM: 16GB/32GB EMMC
- WiFi: 2.4G/5G Dual WiFi
- Bluetooth: BT 4.2
- Ethernet: 1000M RJ45 LAN
- HDMI:HDMI 2.0 Output, 4K@60Hz, 8K@24Hz
- USB: 1x USB 3.0, 3x USB2.0
- Feature: Portrait and landscape display supported, RTC Clock
- Application: Digigal Signage, LCD Screen, Smart home
- Specifications:
- OS: Android 10
- CPU: Rockchip RK3318 Quad Core 64bit
- GPU: Penta-Core Mali-450 Up to 750Mhz+
- RAM: 2GB /4GB DDR3
- ROM: 16GB /32GB /64GB /128GB EMMC Flash
- WiFi: 2.4G +5G Dual-band WiFi
- Bluetooth: BT 4.0
- Ethernet: 100M Ethernet
- Resolution: 4K Ultra HD, 4096x2190 pixels
- USB: 1x USB 3.0, 1x USB 2.0
- Kodi: Kodi 18.1
- Specifications:
- OS: Android 12, Debian11, Ubuntu 18.04
- CPU: Rockchip RK3588 Octa Core
- GPU: Mali-G610 MP4
- RAM: 4GB/8GB/16GB DDR4
- ROM: 32GB/64GB eMMC
- WiFi/BT: 2.4G+5.8GHz Dual WiFi, WiFi6 + BT5.2
- Ethernet: 2x 1000M Gigabit RJ45 LAN
- Resolution:8K @60fps
- Display:1x HDMI Output, 1x HDMI Input, 1x DP
- Application: Interactive screen, Multi-screen Display, Digital Signage, AI, Fitness training, etc.
- Specifications:
- Product Name: RK3566 Linux & Android Dual OS TV Box
- OS: Android 11, Ubuntu 20.04 (Linux 5.15), Linux 4.19, Debian10
- CPU: Rockchip RK3566 Quad Core ARM Cortex A55
- GPU: Mali-G52 1-Core-2EE
- RAM: 4GB/8GB RAM DDR4
- ROM: 32GB/64GB/128GB eMMC Flash
- HDMI: HDMI 2.1, 8Kx4K@24 max resolution output
- WiFi: 2.4G/5GHz Dual WiFi +BT, IEEE 802.11 ac
- Ethernet: 1000M Gigabit RJ45 LAN
- Resolution: 4K Ultra HD,4K@60fps, 8K@24fps
- USB: 1x USB 3.0, 2x USB 2.0
- Material: Metal, plastic
- Application: digital Signage, smart tv
- Specifications:
- Android 11 TV Box
- Powerful Rockchip RK3566 CPU support 4K@60fps and 8K@24fps
- RAM: 4GB/8GB DDR4
- ROM: EMMC 32GB/64GB/128GB
- Wireless Connection: 2.4G/5.8GHz 2T2R Dual WiFi with bluetooth 4.2 and Gigabit Ethernet
- Screen Rotation in setting, support portrait and landscape display
- Application: Digital Signage, 4K Media Player, IPTV, Game
- Optional: RTC, Linux OS, Customize logo and firmware
- Specifications:
- OS: Android 12.0, Debian 11, Ubuntu 18.04/20.04
- CPU: Rockchip RK3588 Octa Core
- GPU: Mali-G610 MP4
- RAM: 4GB/8GB/16GB DDR4
- ROM: 32GB/64GB eMMC
- WiFi/BT: 2.4G+5.8GHz Dual WiFi, WiFi6+ BT5.2
- Ethernet: 10/100M/1000M Gigabit RJ45 LAN
- Resolution:8K @60fps
- HDMI:2x HDMI Output, 1x HDMI Input
- USB: 2xUSB 2.0, 1x USB 3.0

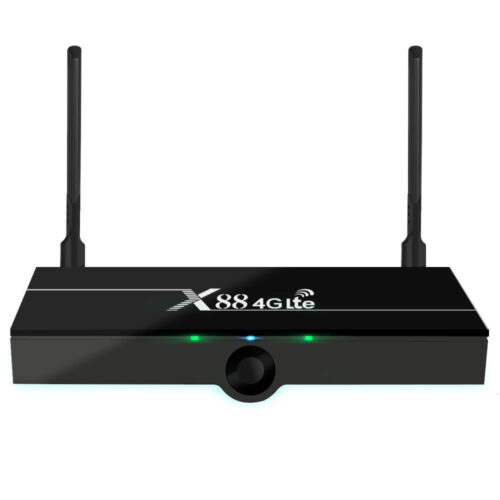

- Specifications:
- OS: Android 9.0
- CPU: Rockchip RK33289 quad Core
- GPU: Penta-Core Mali-450
- RAM: 2GB DDR3
- ROM: 16GB EMMC Flash
- WiFi: 2.4G WiFi
- Ethernet: 10/100M RJ45 LAN
- Resolution:4k ultra HD, 4K@60Hz
- USB:1x High Speed USB 3.0,1x USB 2.0
- 4G Module: Global 4G module (Available for Customized 4G modules)
